TSK -Corrugated Ribbon Wound Silicone-Coated Resistors
TSKR - Adjustable

Series TSK: corrugated alloy tape wound edgewise and held onto a tubular ceramic support by silicone cemented at a very high temperature. Ribbed construction, both sides of the tape on direct contact with cooling air, thus providing a covection area four times greater than that obtained with conventional wirewound resistors.

They are capable to withstand heavy overload surges -up to seven times their rated wattage at 420ºC during twenty seconds- and most suited for controlling motors and equipment requiring high wattage dissipation, low resistance values and high current capacity.

Adjustable type, TSKR, may be fitted with intermediate lugs round the winding space, thus permitting to select whatever ohmic values wanted within the total resistance.

Series TSK, TSKR  agree with CCTU 04-02C requirements.

TSK


Tab Terminal


TSKR

MAIN FEATURES
  • Entirely Welded Construction
  • Maximum Reliability
  • High Long-Term Stability
  • Great Dielectric Strength
  • Ableness to Withstand Heavy Overload Surges
  • Excellent Insulated Resistance
  • Completely Flameproof
  • Low Temperature Coefficient
  • Standard Tolerances: ± 10%, ± 5%
POWER DERATING CURVE AS A FUNCTION OF THE AMBIENT TEMPERATURE



AMBIENT TEMPERATURE ºC

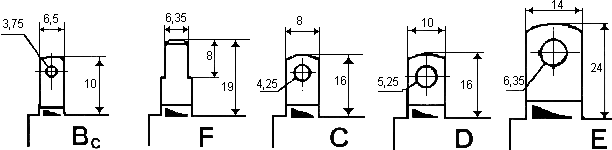

Tab Terminal Types


B Terminal: same as Terminal Bc but 16 mm high instead of 10 mm


General Specifications Table

TYPES
DIMENSIONS
(mm)		 POWER RATE (W) for a Surface  TEMP. OHMIC VALUES
Tamb. 25ºC		 TERMINAL
TYPES		 MOUNTING
SYSTEMS
TSK
D L d H <=350ºC <=420ºC min. max.
TSK 12.75 12 75 4.25 26 45 70 0R06 8R B-Bc-C-Tr V-HS
TSK 20.75 20 75 4.25 32 72 110 0R07 10R B-Bc-C V-HS
TSK 20.100 20 100 4.25 32 90 140 0R10 15R B-Bc-C-F V-HS
TSK 26.87 26 87 6.25 48 100 158 0R13 18R C-D-F-Tr V1-HS-HP
TSK 26.165 26 165 6.25 48 190 305 0R30 30R C-D-F-Tr V1-HS-HP
TSK 30.100 30 100 6.25 50 125 200 0R10 15R C-D-F-Tr V1-HS-HP
TSK 30.153 30 153 6.25 50 188 300 0R10 29R C-D-F-Tr V1-HS-HP
TSK 30.203 30 203 6.25 50 250 400 0R15 41R C-D-F-Tr V1-HS-HP
TSK 30.267 30 267 6.25 50 330 530 0R20 58R C-D-F-Tr V1-HS-HP
TSK 30.305 30 305 6.25 50 375 600 0R25 68R C-D-F-Tr V1-HS-HP
TSK 40.300 40 300 6.25 55 490 800 0R30 72R D-E HP-HE
TSK 40.380 40 380 6.25 55 560 920 0R40 92R D-E HP-HE
TSK 50.300 50 300 6.25 60 560 920 0R40 92R E-Tr HP-HE-HPD
TSK 50.340 50 340 6.25 60 610 1000 0R45 100R E-Tr HP-HE-HPD
TSK 50.373 50 373 6.25 60 650 1050 0R55 120R E-Tr HP-HE-HPD
TSK 50.400 50 400 6.25 60 685 1120 0R55 120R E-Tr HP-HE-HPD
TSK 60.300 60 300 6.25 65 630 1030 0R45 100R E HP-HE-HPD
TSK 60.400 60 400 6.25 65 800 1300 0R60 140R E HP-HE-HPD
TSK 60.450 60 450 6.25 65 900 1465 0R60 160R E HP-HE-HPD
TSK 60.550  60 550 6.25 65 1100 1800  0R60 200R  E  HP-HE-HPD


Tr: Traction Terminal Type
Dimensions Table

     Mounting
Systems


Nominal Power Overloading Operating at Intermittent Duty



Periodical Cycle
 (on + off connections)		 15 s. 30 s. 60 s. 120 s.  K
Overload Cycle
(sec.)		 2 4 7 9 6
2,5 5 9 12 5
3 6 12 15 4
4 8 16 23 3
5 10 20 30 2

P=Pn *K

Legend: Printed according to Norms. It will withstand the action of all commonly used industrial cleansing solvents

Ordering Example:

TSK-30.203 - 10R ± 5%  "HP"
Type Ohmic
Value		 Toler. Mounting
System

Mentioning Terminal Type (Tab, Traction)
