TS -Tubular Wirewound Silicone-Coated Resistors
TSN - Non- Inductive
TSR - Adjustable

Series TS-TSN-TSR, of rugged construction and all electrically welded for higher reliability, are coated with two (sometimes three) layers of special silicone cement polymerized at a very high temperature, thus providing their characteristic high insulation resistance, dielectric strength and climatic protection. Terminal tabs jutting out radially are the only parts of the resistor left uncovered by silicone cement.

TSN by Ayrton-Perry winding method: two resistive wires wound from opposite terminals, currents flowing in parallel so as to reduce Inductance to a minimum. Maximum continuous working Voltage is lowered to about 75% of TS maximum Voltage.

Series TS, TSN and TSR agree with CCTU 04-02C requirements

Tab Terminal
TS / TSN

TSR
 fitted with fixed tapping lugs, contacting the stripped band by means of a silver stud.


MAIN FEATURES
  • Entirely Welded Construction
  • Maximum Reliability
  • High Long-Term Stability
  • Great Dielectric Strength
  • Ableness to Withstand Heavy Overload Surges
  • Excellent Insulated Resistance
  • Completely Flameproof
  • Low Temperature Coefficient: < 150 ppm/ ºC
  • Standard Tolerances: ± 10%, ± 5%, ± 2%
 POWER DERATING CURVE AS A FUNCTION OF THE AMBIENT TEMPERATURE


Ambient Temperature ºC

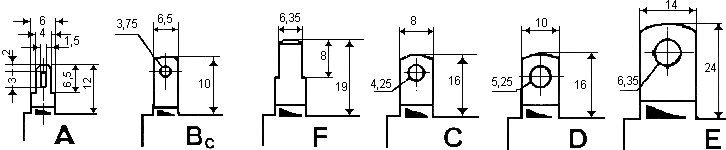

Tab Terminals- Insulated

B Terminal: same as Terminal Bc but 16 mm high instead of 10 mm


General Specifications Table

TYPES
DIMENSIONS
(mm)		 POWER RATE(W) for a Surface  TEMP. OHMIC VALUES
Tamb. 25ºC		 MAX. VOLT. PERMISSIBLE
Vac		 TERMINAL
TYPES 		MOUNTING
SYSTEMS
TS TSR
D L d <=350ºC <=420ºC min. max. min. max. TS TSR TSN
TS 10.45 10 45 6 13 19 0R82 10K 3R3 2K5 380 300 380 A-B-Bc-F-S V-HS
TS 12.50 12 50 8 19 28 1R 12K 3R9 3K 550 350 550 A-B-Bc-F-S-Tr V-HS
TS 12.75 12 75 8 30 45 1R3 22K 5R6 4K7 800 550 800 A-B-Bc-F-S-Tr V-HS
TS 20.75 20 75 14 46 72 1R6 33K 6R8 6K8 800 550 800 A-B-Bc-C-F-S V-HS
TS 20.100 20 100 14 58 90 2R 47K 8R2 10K 900 630 900 A-B-Bc-C-F-S V-HS
TS 26.87 26 87 19 67 100 5R6 43K 8R2 10K 850 600 850 C-D-F-Tr V1-HS-HP
TS 26.165 26 165 19 130 195 18R 100K 18R 22K 1600 1000 1600 C-D-F-Tr V1-HS-HP
TS 30.100 30 100 22 85 135 5R6 68K 12R 15K 900 630 900 C-D-F-S-Tr V1-HS-HP
TS 30.153 30 153 22 130 200 5R6 120K 22R 25K 1500 1000 1500 C-D-F-S-Tr V1-HS-HP
TS 30.203 30 203 22 170 265 6R8 150K 22R 35K 2000 1300 2000 C-D-F-S-Tr V1-HS-HP
TS 30.267 30 267 22 240 355 8R2 220K 27R 47K 3000 1750 3000 C-D-F-S-Tr V1-HS-HP
TS 30.305 30 305 22 280 400 11R 270K 27R 56K 3400 2000 3400 C-D-F-S-Tr V1-HS-HP
TS 40.300 40 300 30 360 530 13R 72K 27R 72K 2800 1700 2800 D-E HP-HE
TS 40.380 40 380 30 430 650 13R 95K 27R 95K 3600 2100 3600 D-E HP-HE
TS 50.300 50 300 40 425 645 13R 92K 27R 92K 2750 1600 2750 E-Tr HP-HE-HPD
TS 50.340 50 340 40 460 700 16R 105K 27R 105K 3100 1800 3100 E-Tr HP-HE-HPD
TS 50.373 50 373 40 500 760 16R 125K 27R 120K 3500 2050 3500 E-Tr HP-HE-HPD
TS 50.400 50 400 40 540 810 16R 125K 27R 125K 3700 2200 3700 E-Tr HP-HE-HPD
TS 60.300 60 300 50 480 725 16R 110K 27R 110K 2750 1600 2750 E HP-HE-HPD
TS 60.400 60 400 50 660 1000 16R 150K 27R 150K 3700 2200 3700 E HP-HE-HPD
TS 60.450 60 450 50 800 1200 20R 160K 30R 160K 4100 2500 4100 E HP-HE-HPD
TS 60.550 60 550 50 970 1450 25R 200K 35R 200K 5000 3000 5000 E HP-HE-HPD

S: Ring Terminal Type
Dimensions Table



Tr: Traction Terminal Type
Dimensions Table

     Mounting
Systems


TSN: For its Minimum and Maximum Ohmic Values, please consult Technical Dprt.

Legend: Printed according to Norms. It will withstand the action of all commonly used industrial cleansing solvents

Ordering Example:

TS-30.203 - 6R8  ± 5%   "HP"
Type Ohm.Value Toler.  Mounting
System

Mentioning Terminal Type (Tab, Ring, Traction)
