Series HS & HSN are components manufactured with the help of advanced machinery.
Prime materials of the highest quality, their construction thoroughly electrically welded, and quality controls at all stages of the process confer those resistors outstanding professional performance and reliability.
In agreement with Spec. CCTU 04-02C

(mm)

GENERAL SPECIFICATIONS TABLE

TYPE	POWER p/ Ths <= 300ºC		OHMIC VALUES		DIMENSIONS MAXIMUM (mm)		MAX. WORKING VOLTAGE	TYPE	TYPE
	T amb. 25ºC	T amb. 70ºC	MIN.	MAX.	D	L	Volts	MIL-R26E	CCTU 04-02C
HS-3	3W	2.5W	0R025	10K	5.6	12.7	125V	RW69	RB59
HS-5	5W	4W	0R025	25K	8	17	250V
HS-6	6W	5W	0R030	30K	8	22	350V		RB61
HS-7	7W	6W	0R050	40K	8	28	500V	RW67	RB57
HS-8	8W	6.5W	0R050	53K	8	36	550V		RB60
HS-10	10W	8W	0R090	72K	10	36	550V
HS-13	13W	11W	0R10	100K	10	47	700V	RW68	RB58

Low-inductance Ayrton-Perry Winding. Maximum continuous voltage is reduced to 70% of Series HS maximum voltage. Ayrton-Perry winding consists of two wires wound from opposite ends, and, therefore, connected in parallel, thus reducing maximum ohmic values obtainable.
Hence, inductance is also reduced considerably since the currents flow in opposite directions.

NON-INDUCTIVE WIREWOUND RESISTORS
SERIES HSN

TYPE	OHMIC VALUES		MAX. VOLTAGE
	MIN.	MAX.	PERMITTED
HSN-3	0R1	300R	87V
HSN-5	0R25	510R	175V
HSN-6	0R50	820R	245V
HSN-7	1R0	1K	350V
HSN-8	1R3	1K3	385V
HSN-10	1R8	1K8	385V
HSN-13	2R4	2K7	490V

Non-inductive Winding (Ayrton-Perry)
Standard Tolerance: ± 5%

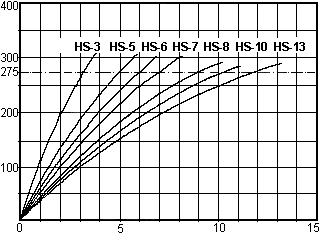

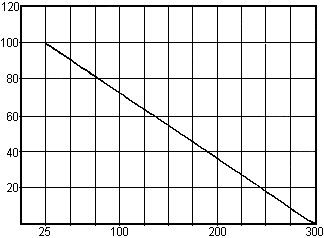

RESISTOR TEMPERATURE RISE AS A FUNCTION OF APPLIED POWER	POWER DERATING CURVE AS A FUNCTION OF THE AMBIENT TEMPERATURE
APPLIED POWER IN W	AMBIENT TEMPERATURE (ºC)

CONSTRUCTION

CORE: Rectified Steatite Rod of High Thermical Conductivity
END CAPS:Stainless Steel AlSi-305 mounted on the core under pressure
RESISTIVE WIRE: Ni-Cr; Ni-Cr-Al; Cu-Ni Alloys electrically welded to caps, and wound under dynamically controlled stress to 1/3 of its elastic limit.
WIRE LEADS: of Electrolytic Copper or Steel, tinned with alloy Sn-Pb 60/40.
RESISTOR COATING: Thick coat of special Silicone-Cement bearing high temperatures

TEST	CONDITIONS	NORMA CCTU 04-02C	NORMA MIL R-26E
LOAD LIFE	Nominal Power Rate: Pn 1,5h.ON -0,5h.OFF	At 1000h R <= 5%	At 2000h R <= 3%
LONG-TERM DAMP HEAT	Tamb.= 40ºC; HR = 93% Power = Pn/100	After 56 days R < 0,6%	After 56 days R < 0,6%
SHORT-TERM OVERLOAD	10xPn during 5 sec.	R < 0,5% HS-3 < 2%	R < 0,5% HS-3 < 2%
INSULATION RESISTANCE	500 V.d.c.	> 1000 M ohms	> 1000 M ohms
DIELECTRIC STRENGTH	1000 V.a.c. applied at 100Vxsec.during 1mn.	> 1000 V.d.c.	> 1000 V.a.c.
MECHANICAL TESTS	Soldering Test Solvents Resistance Lead Pull Resistance	In accordance with CCTU 01-01A Specs.	In accordance with MIL STD-202 Specs

Electrical Specifications

Standard Tolerances: ± 5%; ± 2%
Special Tolerances: ± 1%; ± 0,5%
Dialectric Strength: >1000 V.c.a.
Standard Temperature Coefficient: T.C.<= 100 p.p.m/ºC
For values lower than 0R1: T.C.<=400 p.p.m/ºC

Special Temperature Coefficient

Res.> 10R: T.C.<= ± 20 p.p.m./ºC
1R0 < Res.< 9R9: T.C.<= ± 50 p.p.m./ºC
0R1 < Res.< 0R99: T.C.<= ± 90 p.p.m./ºC
Res.< 0R1: T.C.<= ± 400.p.m/ºC

Norms: In agreement with CCTU 04-02C; can be manufactured to agree with MIL-R26E Specs.
Special Designs: Series HS can be produced using Al₂O₃ cores of high purity, thus obtaining higher specific power for equal temperature Ths<= 350ºC. Also, fusible resistors meeting the customer´s requirements.
Resistor Marking: Legend printed according to Norms: Manufacturer, Type, Ohmic Value, Tolerance. It will withstand the action of all commonly used industrial cleansing solvents.
Taping Axial Resistors: Following Series can be supplied bandoliered: HS-3, HS-5, HS-6

For Special Ohmic Values, Consult Technical Department.

HSN-6-	0R50	± 5%
Type (Non-inductive)	Ohm.Value	Toler.
